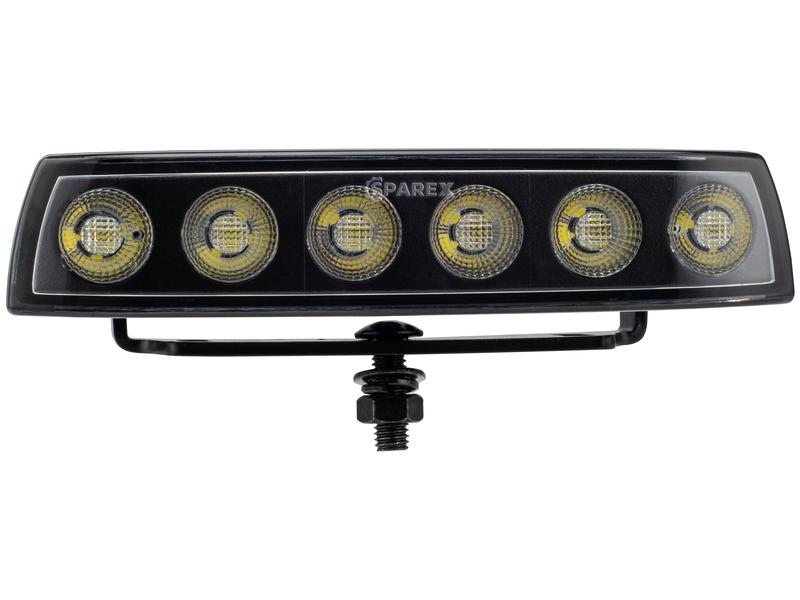

LED Work Light, Interference: Class 4, 6400 Lumens Raw, 10-30V

Specifications

ECE Rating: Reg 10
CE Approved: Yes
IP Rating: IP6K9K
Connection Type: DT Connector

Barcode 128

S.173422

Barcode EAN13

5045161734222

Beam Angle

180°

Beam Type

Flood Beam

Brand

Sparex

Cable length (mm)

200

CE Approved

Yes

Colour Temperature

5890K(±500K)

Connection Type

DT Connector

ECE Rating

Reg 10

Effective Lumens

3800

Fixing:

Bracket

Housing Material

Aluminium

Interference EMC EMI CISPR 25

Class 4

IP Rating

IP6K9K

Lens Colour

Clear

Lens Material

Plastic Safety Glass

Light source

LED

Lumens Raw

6400

Lux Value

55.81

Number of LEDs:

30 x 1W LEDs

Overall height (ins)

1-13/16

Overall height (mm)

46

Overall length (ins)

6-47/64

Overall length (mm)

171

Overall width (ins)

2-13/64

Overall width (mm)

56

Power Consumption @ 12V:

2.5Amps

Power Consumption @ 24V:

1.25Amps

RH or LH Fitment

RH & LH

RoHS Approved

Yes

SAE Approved

No

Shape

Rectangular

Tariff Code

8539213000

Volts

10-30V

With Noise Suppression

Yes

Working Temperature °C

-40°C to 50°C

Suitable For Make/Model

Fendt

207 F GEN3, 207 V GEN3, 208 F GEN3, 208 V GEN3, 209 F GEN3, 209 P GEN3, 209 V GEN3, 210 F GEN3, 210 P GEN3, 210 V GEN3, 211 F GEN3, 211 P GEN3, 211 V GEN3, E107 V VARIO

OEM Part Numbers

Fendt

V220PB2526021

Catalogue Pages

This product does not appear in any Sparex printed catalogues
