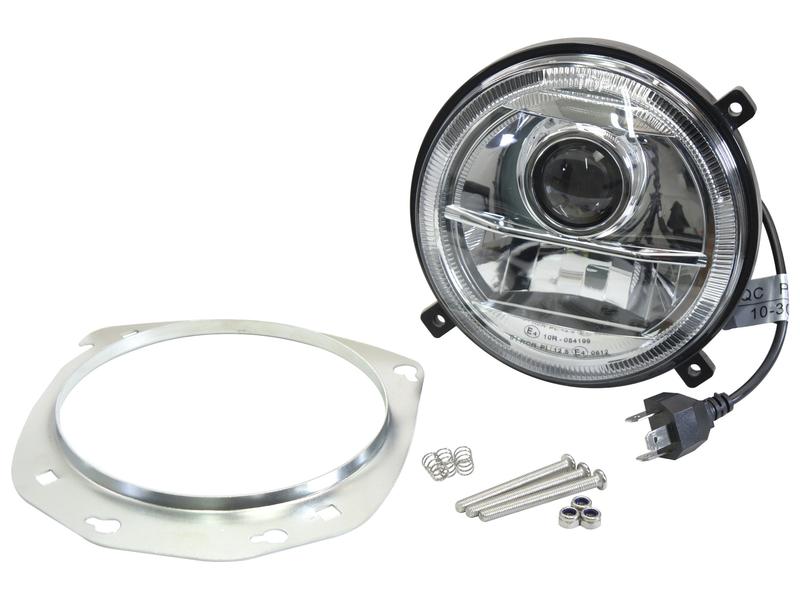

LED Head Light, Interference3200 Lumens Raw, 10-30V Image 1

  • LED Head Light, Interference3200 Lumens Raw, 10-30V 1
  • LED Head Light, Interference3200 Lumens Raw, 10-30V 2
  • LED Head Light, Interference3200 Lumens Raw, 10-30V 3
  • LED Head Light, Interference3200 Lumens Raw, 10-30V 4
  • LED Head Light, Interference3200 Lumens Raw, 10-30V 5
  • LED Head Light, Interference3200 Lumens Raw, 10-30V 6
  • LED Head Light, Interference3200 Lumens Raw, 10-30V 7
  • LED Head Light, Interference3200 Lumens Raw, 10-30V 8
  • LED Head Light, Interference3200 Lumens Raw, 10-30V 9
LED Head Light, Interference3200 Lumens Raw, 10-30V - Image 3

LED Head Light, Interference3200 Lumens Raw, 10-30V

Make: 65

S.174508

Weight: 0.80kg
ECE Rating: Reg10 - E4 10R_054199
CE Approved: Yes
IP Rating: IP6K9K
Connection Type: H4 Connector View Product Specifications
View Suitable For View OEM Part Numbers
Related Items
Alternative Products
Head Light, (Halogen), RH, RH Dip, 12V
Make: 86
S.160755 - Head Light, (Halogen), RH, RH Dip, 12V
Product Specifications

Specifications

ECE Rating: Reg10 - E4 10R_054199
CE Approved: Yes
IP Rating: IP6K9K
Connection Type: H4 Connector
Alternative to
Head Light, (Halogen), RH, RH Dip, 12VS.160755https://75025d40dd58ab042ef4-3509ef0b9210fbf84c18b36ced24de7a.ssl.cf3.rackcdn.com/imagelibrary_sml/160755_pic1.jpgE Approved: Yes
IP Rating
Connection TypeS.160755
Barcode 128
S.174508
Barcode EAN13
5045161745082
Beam Angle
Low Beam 70° / High Beam 30°
Beam Type
High Beam
Brand
Sparex
Cable length (mm)
200
CE Approved
Yes
Connection Type
H4 Connector
ECE Rating
Reg10 - E4 10R_054199
Effective Lumens
750 - 1600
Fixing:
Bracket
Housing Material
Aluminium
IP Rating
IP6K9K
Lens Colour
Clear
Lens Material
Plastic Safety Glass
Light source
LED
Lumens Raw
3200
Lux Value
Low Beam 17760cd, High Beam 69750cd
Notes
Bracket included
Number of LEDs:
Low Beam 1 LED
Overall height (ins)
5-31/64
Overall height (mm)
139.5
Overall length (ins)
5-31/64
Overall length (mm)
139.5
Overall width (ins)
3-29/64
Overall width (mm)
87.6
Power Consumption @ 12V:
Low Beam 2.08Amps
Power Consumption @ 24V:
Low Beam 1.04Amps
RoHS Approved
Yes
SAE Approved
No
Shape
Round
Tariff Code
8539293000
Volts
10-30V
With Noise Suppression
Yes
Working Temperature °C
-40°C to 50°C
Suitable For Make/Model
OEM Part Numbers

OEM Part Numbers

This product is not associated with any particular OEM part number
Catalogue Pages

Catalogue Pages

This product does not appear in any Sparex printed catalogues
