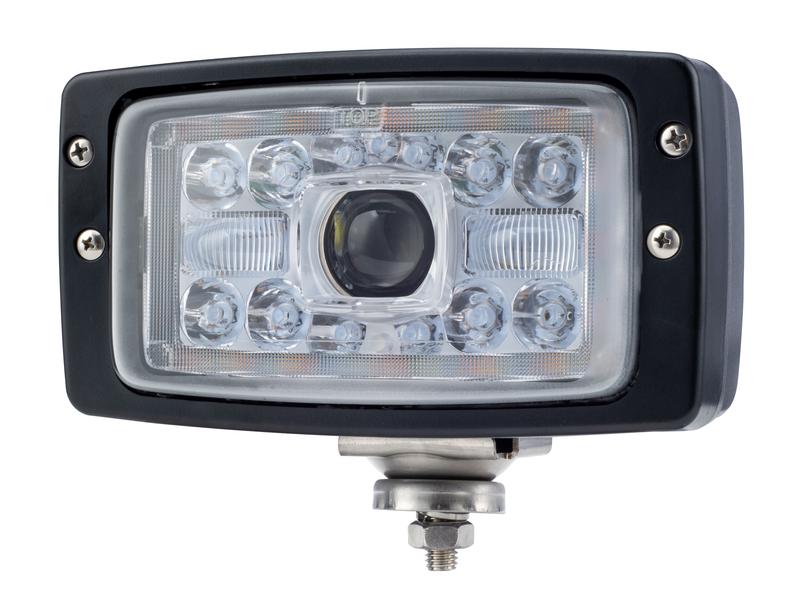

LED Head Light, Interference: Class 3, 6046 - 6480 Lumens Raw, 10-30V Image 1

  • LED Head Light, Interference: Class 3, 6046 - 6480 Lumens Raw, 10-30V 1
  • LED Head Light, Interference: Class 3, 6046 - 6480 Lumens Raw, 10-30V 2
  • LED Head Light, Interference: Class 3, 6046 - 6480 Lumens Raw, 10-30V 3
  • LED Head Light, Interference: Class 3, 6046 - 6480 Lumens Raw, 10-30V 4
  • LED Head Light, Interference: Class 3, 6046 - 6480 Lumens Raw, 10-30V 5
  • LED Head Light, Interference: Class 3, 6046 - 6480 Lumens Raw, 10-30V 6
  • LED Head Light, Interference: Class 3, 6046 - 6480 Lumens Raw, 10-30V 7
  • LED Head Light, Interference: Class 3, 6046 - 6480 Lumens Raw, 10-30V 8
  • LED Head Light, Interference: Class 3, 6046 - 6480 Lumens Raw, 10-30V 9
  • LED Head Light, Interference: Class 3, 6046 - 6480 Lumens Raw, 10-30V 10
LED Head Light, Interference: Class 3, 6046 - 6480 Lumens Raw, 10-30V - Image 3

LED Head Light, Interference: Class 3, 6046 - 6480 Lumens Raw, 10-30V

Make: 65

S.174510

Weight: 0.80kg
ECE Rating: Reg10 - E9 10R_06 24126
CE Approved: Yes
IP Rating: IP6K9K
Connection Type: Cable View Product Specifications
View Suitable For View OEM Part Numbers
Related Items
Product Specifications

Specifications

ECE Rating: Reg10 - E9 10R_06 24126
CE Approved: Yes
IP Rating: IP6K9K
Connection Type: Cable
Barcode 128
S.174510
Barcode EAN13
5045161745105
Beam Angle
Low Beam 100° / High Beam 100°
Beam Type
High Beam
Brand
Sparex
Cable length (mm)
400
CE Approved
Yes
Connection Type
Cable
ECE Rating
Reg10 - E9 10R_06 24126
Effective Lumens
1800 - 3600
Fixing:
Bracket
Housing Material
Aluminium
Interference EMC EMI CISPR 25
Class 3
IP Rating
IP6K9K
Lens Colour
Clear
Lens Material
Plastic Safety Glass
Light source
LED
Lumens Raw
6046 - 6480
Lux Value
Low Beam 23000cd, High Beam 88000cd
Notes
Bracket included
Number of LEDs:
Low Beam 7 LED
Overall height (ins)
5-13/16
Overall height (mm)
147.56
Overall length (ins)
7-3/16
Overall length (mm)
182.5
Overall width (ins)
3-13/16
Overall width (mm)
96.87
Power Consumption @ 12V:
Low Beam 3.66Amps
Power Consumption @ 24V:
Low Beam 1.83Amps
RoHS Approved
Yes
SAE Approved
No
Shape
Rectangular
Tariff Code
8539293000
Volts
10-30V
With Noise Suppression
Yes
Working Temperature °C
-40°C to 50°C
Suitable For Make/Model

Suitable For Make/Model

This product is not associated with any particular make or model
OEM Part Numbers

OEM Part Numbers

This product is not associated with any particular OEM part number
Catalogue Pages

Catalogue Pages

This product does not appear in any Sparex printed catalogues
