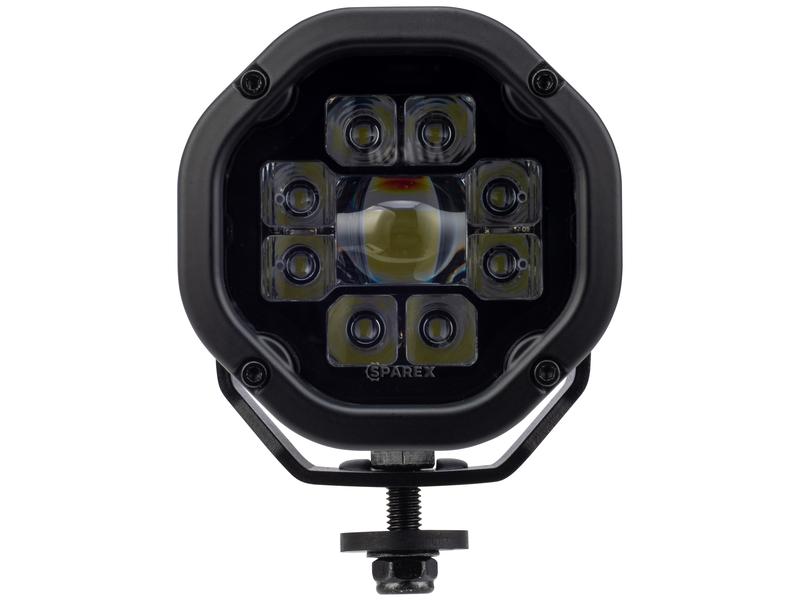

LED Head Light, Interference: Class 3, 2800 / 3410 Lumens Raw, 10-30V Image 1

  • LED Head Light, Interference: Class 3, 2800 / 3410 Lumens Raw, 10-30V 1
  • LED Head Light, Interference: Class 3, 2800 / 3410 Lumens Raw, 10-30V 2
  • LED Head Light, Interference: Class 3, 2800 / 3410 Lumens Raw, 10-30V 3
  • LED Head Light, Interference: Class 3, 2800 / 3410 Lumens Raw, 10-30V 4
  • LED Head Light, Interference: Class 3, 2800 / 3410 Lumens Raw, 10-30V 5
  • LED Head Light, Interference: Class 3, 2800 / 3410 Lumens Raw, 10-30V 6
  • LED Head Light, Interference: Class 3, 2800 / 3410 Lumens Raw, 10-30V 7
  • LED Head Light, Interference: Class 3, 2800 / 3410 Lumens Raw, 10-30V 8
LED Head Light, Interference: Class 3, 2800 / 3410 Lumens Raw, 10-30V - Image 3

LED Head Light, Interference: Class 3, 2800 / 3410 Lumens Raw, 10-30V

Make: 65

S.173591

Weight: 0.90kg
ECE Rating: Reg 10
CE Approved: Yes
IP Rating: IP6K10K
Connection Type: Cable View Product Specifications
View Suitable For View OEM Part Numbers
Related Items
LED Head Lights - High Beam only, Interference: Class 5, RH & LH (Straight), 6000 Lumens Raw, 10-30V
Make: 65
S.171267 - LED Head Lights - High Beam only, Interference: Class 5, RH & LH (Straight), 6000 Lumens Raw, 10-30V
Product Specifications

Specifications

ECE Rating: Reg 10
CE Approved: Yes
IP Rating: IP6K10K
Connection Type: Cable
Sparex
Barcode 128
S.173591
Barcode EAN13
5045161735915
Beam Angle
Low Beam 70° / High Beam 40°
Beam Type
High Beam
Brand
Sparex
Cable length (mm)
400
CE Approved
Yes
Connection Type
Cable
ECE Rating
Reg 10
Effective Lumens
1600 / 1600
Fixing:
Bracket
Housing Material
Aluminium
Interference EMC EMI CISPR 25
Class 3
IP Rating
IP6K10K
Lens Colour
Clear
Lens Material
Plastic Safety Glass
Light source
LED
Lumens Raw
2800 / 3410
Lux Value
45000
Notes
Bracket included
Number of LEDs:
42 LEDs
Overall height (ins)
3-27/32
Overall height (mm)
97.5
Overall length (ins)
3-15/32
Overall length (mm)
88
Overall width (ins)
2-13/32
Overall width (mm)
61.3
Power Consumption @ 12V:
Low Beam 2.17Amps
Power Consumption @ 24V:
Low Beam 1.16Amps
Related products
LED Head Lights - High Beam only, Interference: Class 5, RH & LH (Straight), 6000 Lumens Raw, 10-30VS.171267https://75025d40dd58ab042ef4-3509ef0b9210fbf84c18b36ced24de7a.ssl.cf3.rackcdn.com/imagelibrary_sml/171267_pic1.jpgSparexECE Rating: Reg 10 - E9 10R06/02 23624, Reg 148 - E0 148R00/04 11265, Reg 149 - E9 149R00/05 11265
CE Approved: Yes
IP Rating: IP6K9K
Connection Type: CableS.171267
RoHS Approved
Yes
SAE Approved
No
Shape
Round
Tariff Code
8539213000
Volts
10-30V
With Noise Suppression
Yes
Working Temperature °C
-40°C to 50°C
