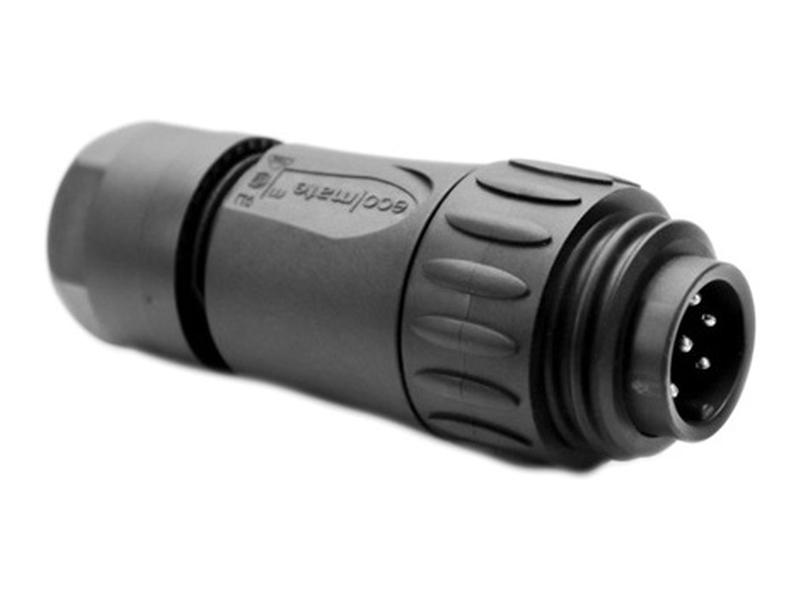

ISOBUS Plug Ecomate™ 12A Image 1

  • ISOBUS Plug Ecomate™ 12A 1
  • ISOBUS Plug Ecomate™ 12A 2
  • ISOBUS Plug Ecomate™ 12A 3
ISOBUS Plug Ecomate™ 12A - Image 3

ISOBUS Plug Ecomate™ 12A

Make: 191

S.173420

Weight: 0.13kg
The Amphenol ISOBUS plug range is of a premium quality, using a bayonet style locking system and cable gland end. The pin contacts provided are simply crimped onto the wiring of the existing loom and then clipped into the plug. The range is suitable for a cable diameter of 14-18mm. View Product Specifications
View Suitable For View OEM Part Numbers
Product Specifications

Specifications

The Amphenol ISOBUS plug range is of a premium quality, using a bayonet style locking system and cable gland end. The pin contacts provided are simply crimped onto the wiring of the existing loom and then clipped into the plug. The range is suitable for a cable diameter of 14-18mm.
Amphenol
Barcode 128
S.173420
Barcode EAN13
5045161734208
Brand
Amphenol
Contact Pin Type
turned contact 8,12,16
Current Carrying Capacity
12A
Housing Material
Black Polyamide
IP Rating
IP67
Male Female
Female
Number of pins
6 Pin
Number of Positions
6
Rated Voltage
250V
Related products
7 Pin InCab Ecomate® Female BlackS.165271https://75025d40dd58ab042ef4-3509ef0b9210fbf84c18b36ced24de7a.ssl.cf3.rackcdn.com/imagelibrary_sml/165271_pic1.jpgAmphenol S.165271
RoHS Approved
Yes
Tariff Code
8536699099
Terminals
crimp
Suitable For Make/Model

Suitable For Make/Model

This product is not associated with any particular make or model
OEM Part Numbers

OEM Part Numbers

Amphenol
C016 30H006 100 12
Catalogue Pages

Catalogue Pages

This product does not appear in any Sparex printed catalogues
